Services
Data Centers Cooling Equipment
Cooling system consume a significant percentage of a data centre’s overall power usage. Our equipment and know-how should serve your commitment on future operation optimisation and environment responsibility.
Services
Data Centers Cooling Equipment
Data centre require uninterrupted cooling to ensure adequate working conditions and functionality of IT equipment. Thermal buffer tanks are used in the cooling system to ensure continuous chilled water supply during emergency such as chiller shut down or power interruption, before normal working condition is being restored.
Data Centers Cooling Equipment:
Contains Buffer Tank, Liquid Cooling System, Integrated Unit: Expansion Tank, Degasser & Containerized System
1.

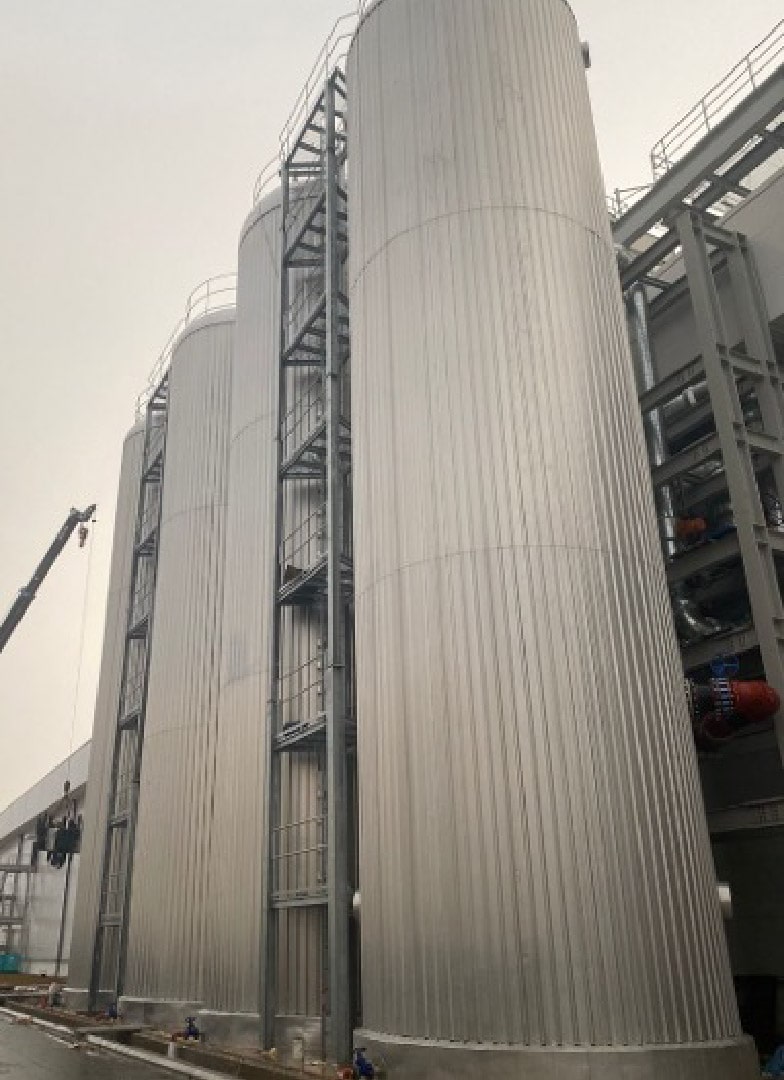

Vertical type buffer tank with 4 x 250m3 capacity in Sedenak.
2.

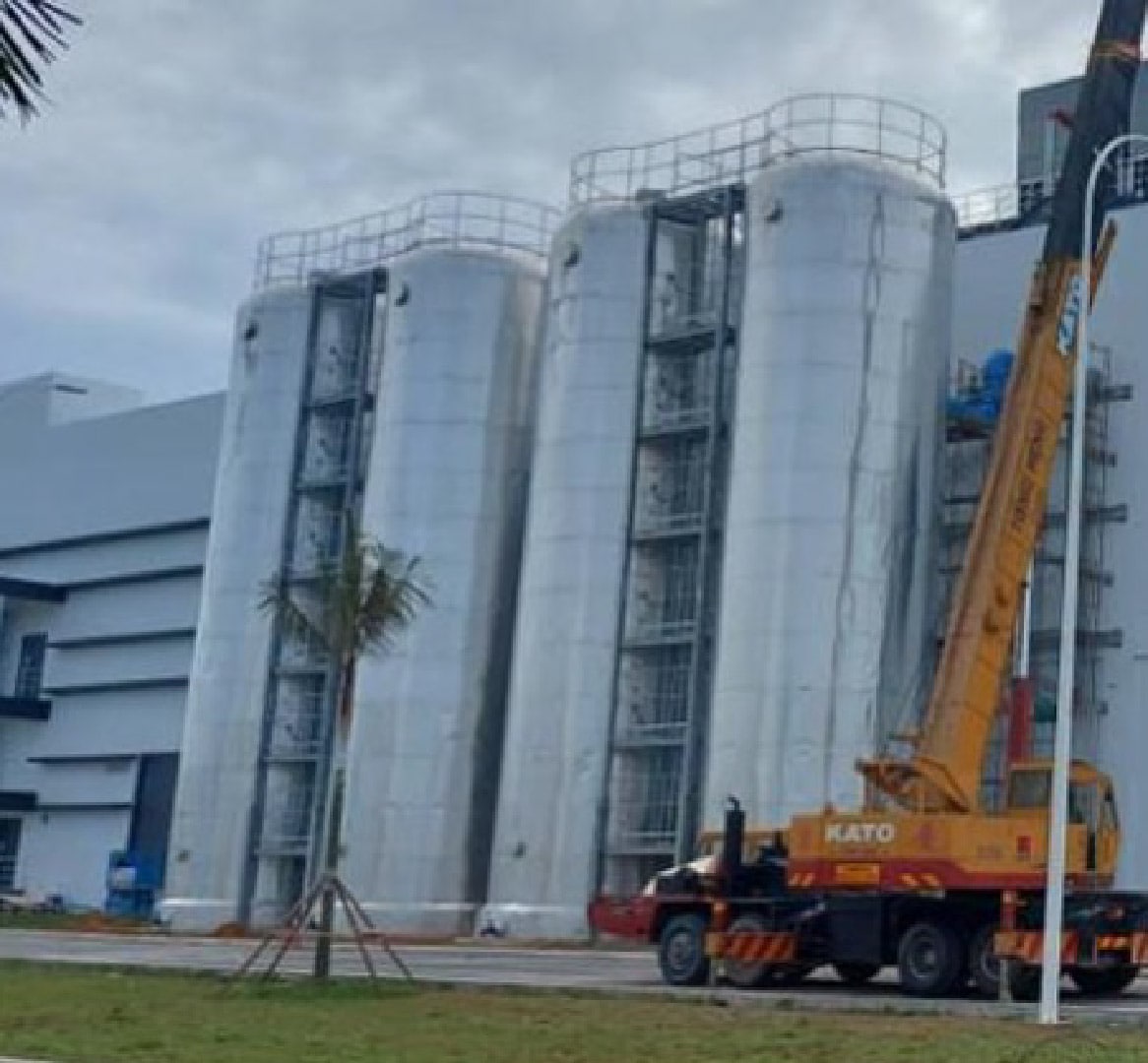

Vertical type buffer tank with 4 x 300m3 capacity in Sedenak (120MW Hyperscale DC)
3.

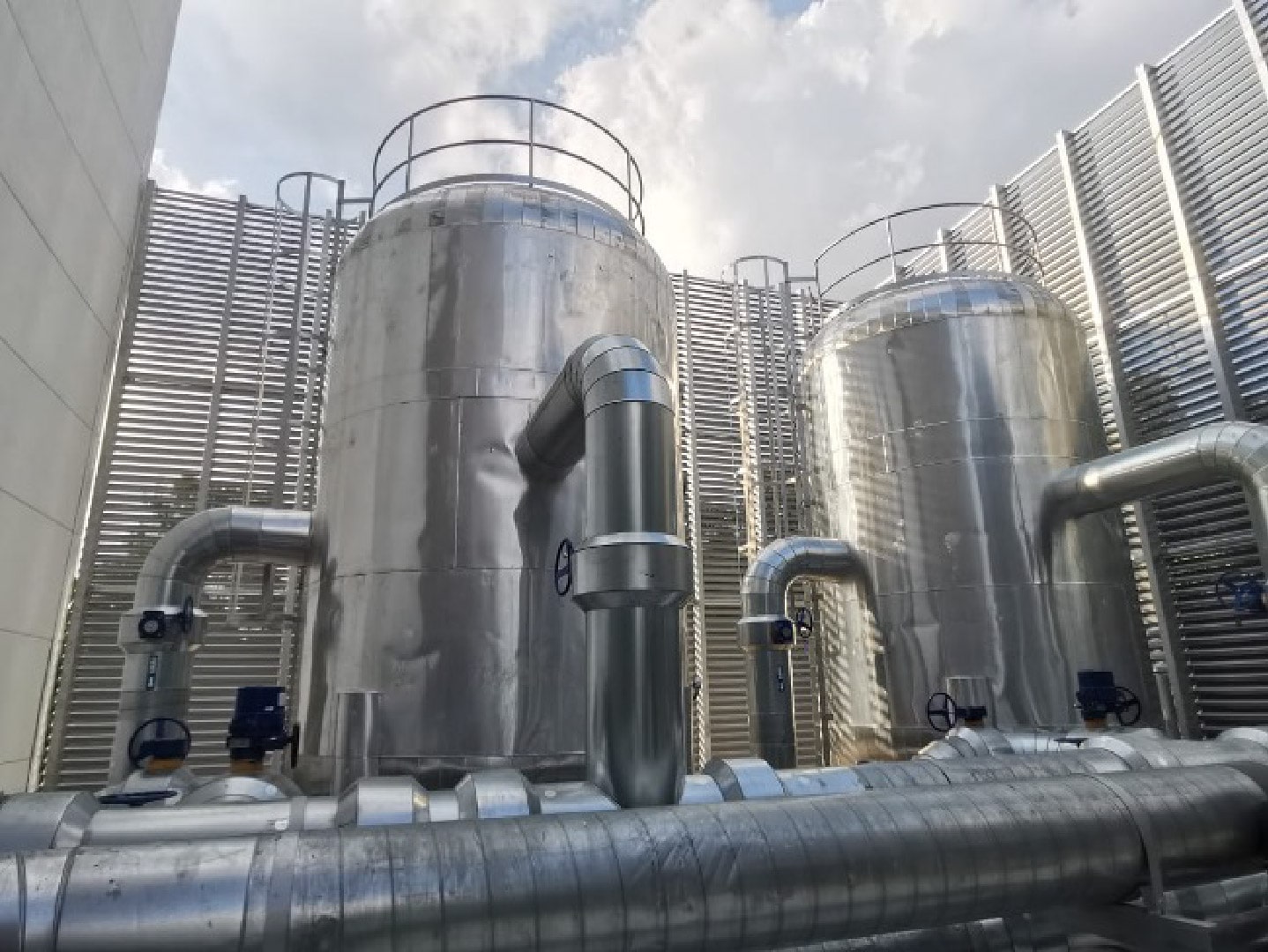

YTL buffer tank.
On going
Why Choose Us
Importance of Choosing the Right Buffer Tank
The comparison between different types of tank
Our Buffer Tank
Buffer Tank With Diffuser
- Our diffuser applies thermal stratification to create temperature layers. It is custom designed by experienced TES designer to suit every single different condition.
- Different from others, this diffuser can be applied in all storage conditions.
- It creates perfect laminar flow. By utilizing the natural density differential characteristic of water, thermocline will be formed due to isothermal reaction.
- Performance of a buffer tank is depending on its FOM. This diffuser is able to achieve around 80%, which is comparatively higher than others.
Others Buffer Tank
Baffle Plate Tank
Empty Tank Without Diffuser
Buffer Tank

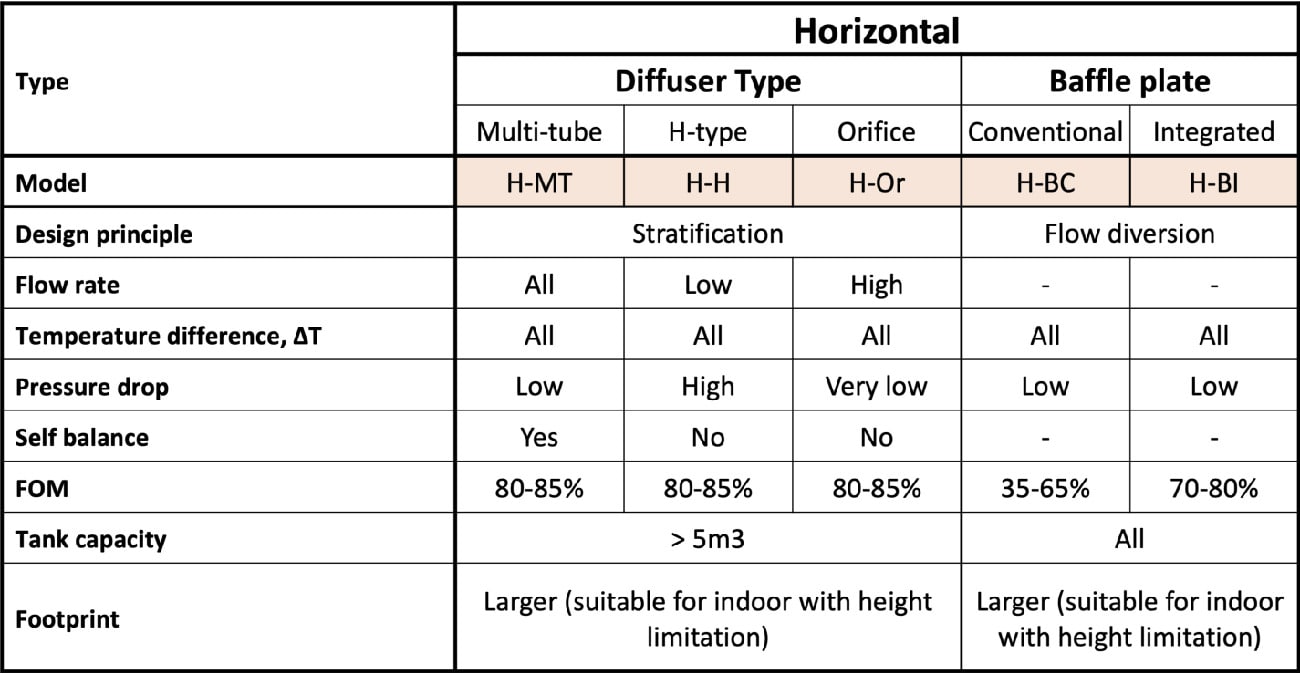

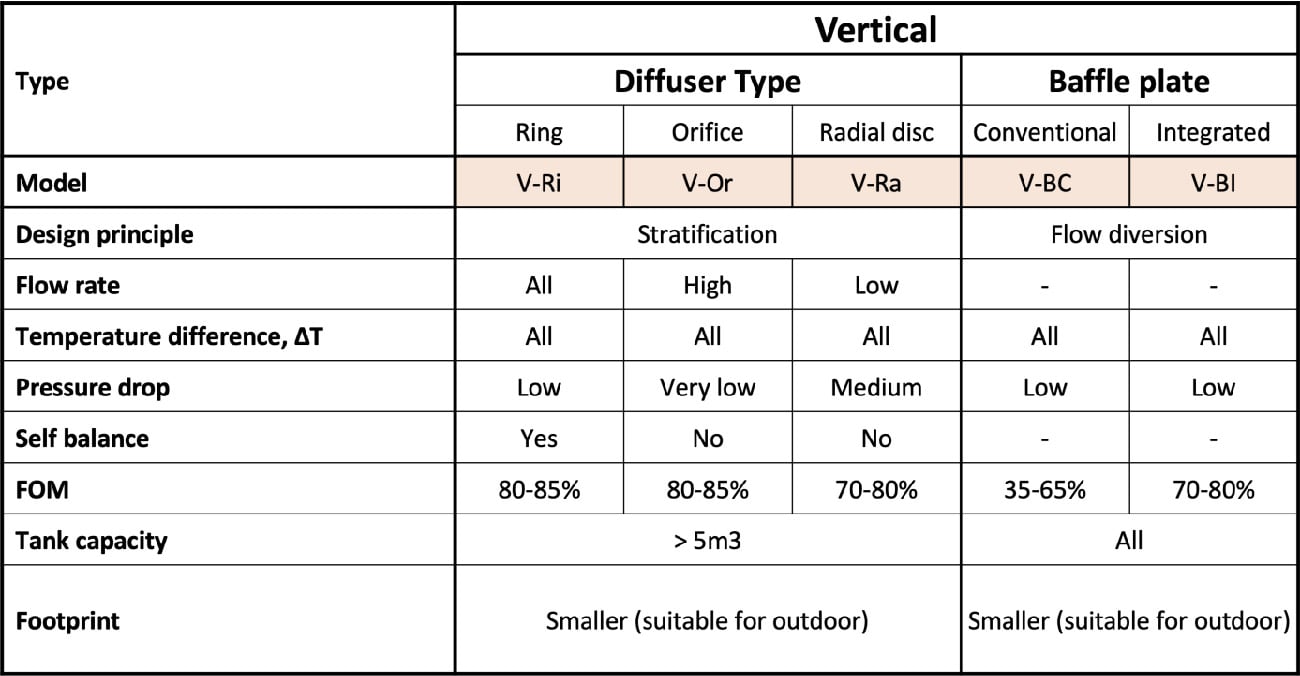

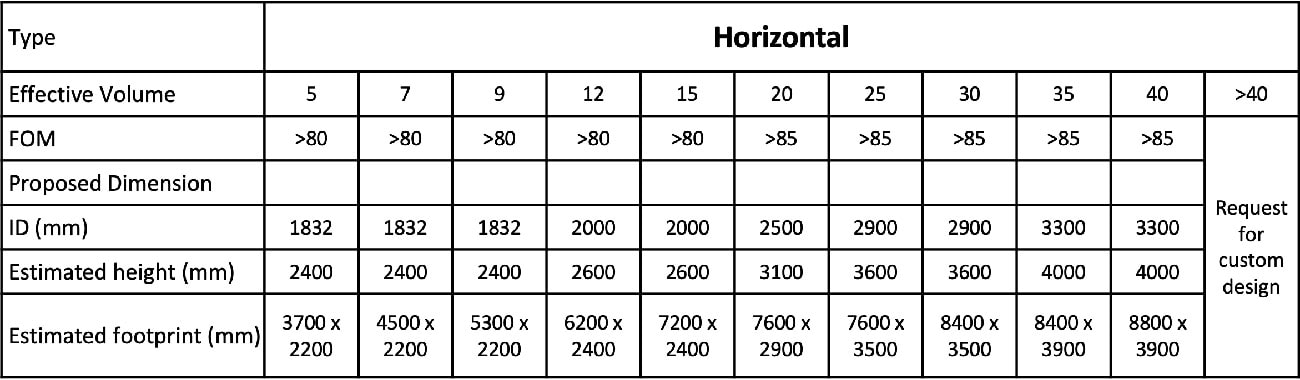

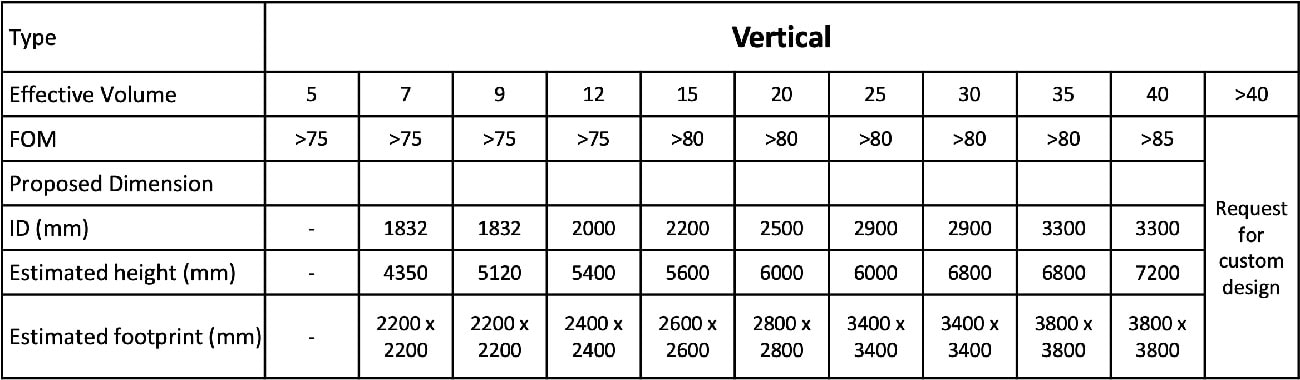

Types & Model Selection
Vertical
- Better FOM and performance for small tank
- Suitable for indoor installation which have height limitation
- Suitable for all capacities
Horizontal
- Small foot print
- More connection option
- Suitable for bigger capacity
Our Experiences
Project Reference
Project Details:
-
Project:
MY06 Phase 3, Bridge Data Center -
Scope:
Supply of Chilled Water Thermal Buffer Tanks -
Capacity:
4 x 300m³ -
End User:
ByteDance (Tik Tok)
1.
Project Details:
-
Project:
Lion Data Center (BDC) -
Scope:
Supply of Chilled Water Thermal Buffer Tanks -
Capacity:
2 x 30m³
2.
Project Details:
-
Project:
MY06 Phase 2, Bridge Data Center -
Scope:
Supply of Chilled Water Thermal Buffer Tanks -
Capacity:
4 x 250m³ -
End User:
ByteDance (Tik Tok)
